Product Introduction

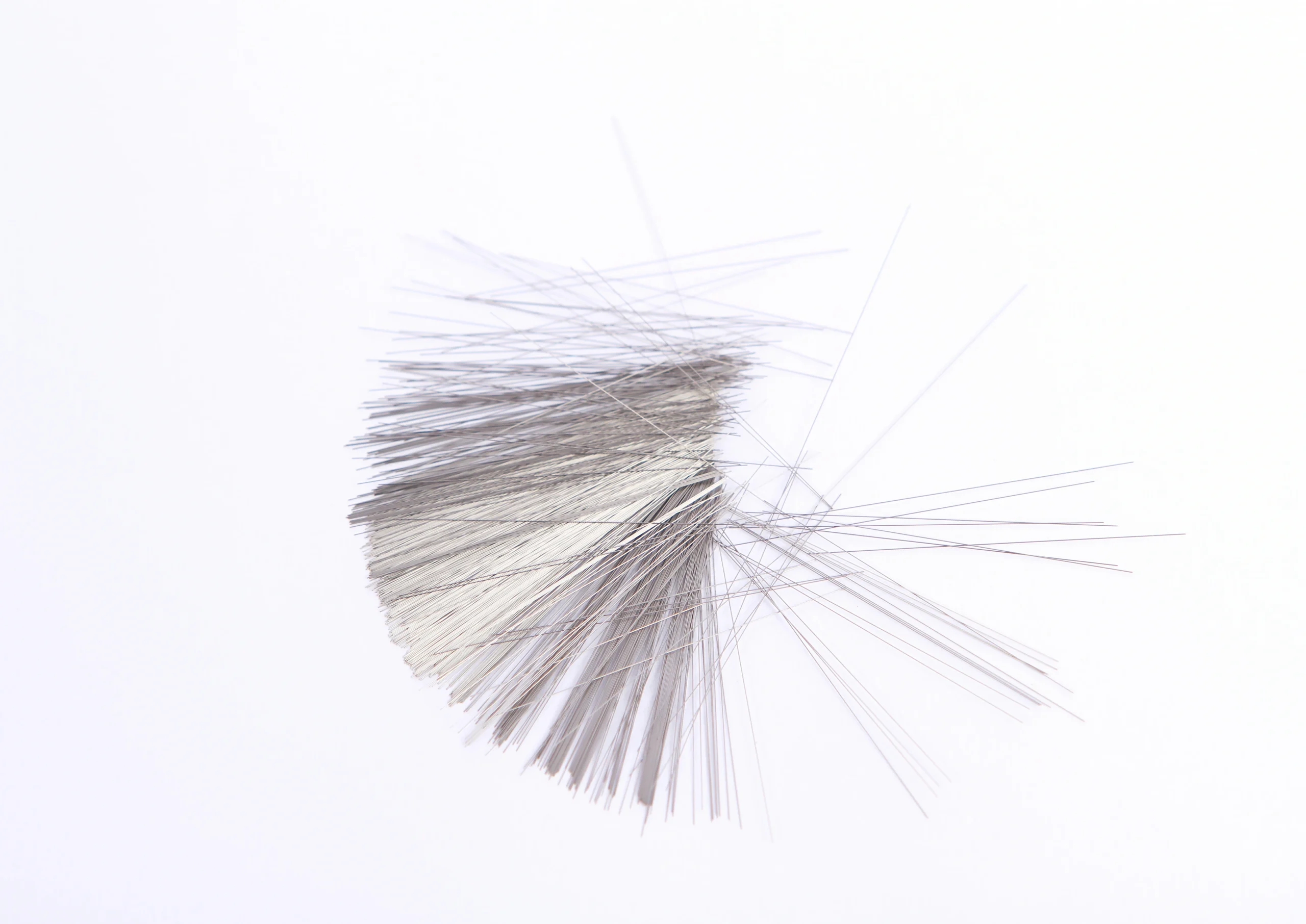

Medical grade precision straightened wire is biocompatible raw material for minimally invasive medical devices. Made of Nitinol shape memory alloy, cobalt-chromium alloy and 316L medical stainless steel, it is processed by wire drawing, traceless annealing and high-precision straightening in medical dust-free clean workshop.
Low-friction, burr-free surface, excellent biocompatibility, body fluid corrosion resistance and bending fatigue resistance make it core core wire for cardiovascular, peripheral vessel, gastroenterology & urology interventional guide wires. We provide medical deep processing including tipping & fixed-length cutting in compliance with medical raw material standards.
Core Advantages
Full-process medical dust-free production without impurity contamination, meet biocompatibility standard for direct human tissue contact.
Ultra-fine precision straightening with uniform straightness, easy for secondary medical processing such as coating & shaping.
Super flexible resilience for smooth delivery in complex human cavities, reduce vascular injury risk during operation.
Resist EO gas & high-temperature sterilization, stable performance for long-term clinical use.
Fully customized sizes starting from 0.08mm, adjustable hardness & surface roughness.
Available Materials
Nitinol shape memory alloy, medical cobalt-chromium alloy, non-magnetic 316L VM medical stainless steel.
Specifications
| Diameter | 0.08mm~2.0mm medical ultra-fine range |
| Tolerance | ±0.005mm~±0.01mm medical precision grade |
| Surface | Clean traceless matte / mirror optional |
| Processing | Clean straightening, burr-free tipping, sterile cut packaging, surface passivation pretreatment |
| Applications | Cardiovascular interventional guide wire, peripheral vascular minimally invasive wire, endoscopic diagnosis wire, urology & anorectal interventional devices, implant elastic support wire, puncture needle blank |
| Quality Assurance | Produced in strict accordance with medical raw material regulations. Biocompatibility test report & spectrum certificate available. Independent vacuum sterile export packaging. Support R&D samples and long-term bulk supply for medical manufacturers. |
Medical Grade Precision Straightened Wire
-
